How To Wire A Fuel Pump Relay : fuel pump relay remote wire 12v or ground - LS1TECH : The fuel pump relay is an electronic component that is found on virtually all vehicles equipped with an internal combustion engine.
Dapatkan link
Facebook
Twitter
Pinterest
Email
Aplikasi Lainnya
How To Wire A Fuel Pump Relay : fuel pump relay remote wire 12v or ground - LS1TECH : The fuel pump relay is an electronic component that is found on virtually all vehicles equipped with an internal combustion engine.. On the fuel pump harness, we will be working with only 1 wire and its the black and yellow one. Do you have an ecm at all with a swap to a carb? They are usually labeled 30, 85, 86, and 87. However, some fuel pump relays come in different shapes and sizes, so it's best to locate your manufacturer's diagram if you're having trouble to figure out which pin is which, there will usually be numbers on the bottom of the relay that indicate the pin positions, or you can locate a wiring diagram. You'll be able to find out if the fuel pump relay, or the fuel pump inertia switch.
The fuel pump relay position may vary depending on year and model. Locating the fuel pump relay iv. 10 gauge wire, power from alternator, 30 amp inline breaker. How do you tell if a fuel pump relay is bad? They are usually labeled 30, 85, 86, and 87.
Wells 20987 Fuel Pump Relay: Amazon.in: Car & Motorbike from m.media-amazon.com A fuel pump relay functions primarily to maintain a consistent voltage supply to the. Fuse block starting out, main battery feed to relay and to batt hot fuse. Ad by forge of empires. Do you have an ecm at all with a swap to a carb? With the help of this 'how to' tutorial, i'll show you how to do it using only a multimeter. If your fuel pump relay is bad, you're going to have some drivability issues. If the relay is fine but the fuel pump doesn't work then check supply voltage at the pump, if there's no supply voltage at the pump inspite the relay testing ok then you've got a wiring problem or a loose connection. Locating the fuel pump relay iv.
Route all pink wires, along with fuel pump relay wire.

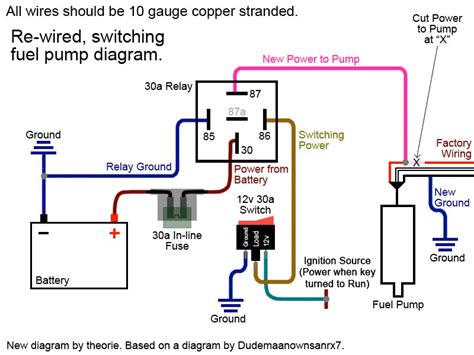

Electric fuel pump wiring diagram: When wiring an electric fuel pump, we strongly recommend using an oil pressure cutoff switch for safety. Here is a picture of all the wires connected solder all. Ground, input voltage, load (which is connected directly to the fuel pump wiring), and battery. This video details how to add an electric fuel pump to your project. Ad by forge of empires. On the fuel pump harness, we will be working with only 1 wire and its the black and yellow one. But how can i know for sure its that? You may be getting the proper voltage to it. The only other thing i can think of is problems with the control module. Consequently, it acts as the switch that connects electrical current from one terminal to the other. In this wiring arrangement you won't have to touch the fuel at all, but if you do use caution. However, some fuel pump relays come in different shapes and sizes, so it's best to locate your manufacturer's diagram if you're having trouble to figure out which pin is which, there will usually be numbers on the bottom of the relay that indicate the pin positions, or you can locate a wiring diagram.
If this part is going out, you're going to know it right most fuel pump relays have four main pins: How do you tell if a fuel pump relay is bad? Wire pin 85 of the relay to the. Do you have an ecm at all with a swap to a carb? I'm just not that savy when it comes to electrical problems.
How to Test a Fuel Pump Relay and Other Automotive Relays ... from images.saymedia-content.com Electric fuel pump wiring diagram: A fuel pump relay or any kind of relay is an effective way to utilize a small degree of voltage to generate a signal in order how to diagnose a bad fuel pump relay? Ground, input voltage, load (which is connected directly to the fuel pump wiring), and battery. With the help of this 'how to' tutorial, i'll show you how to do it using only a multimeter. You must have the correct wire size to it. I buy packs of 20 tachometric relays and fit them to alot of cars cause itsd illegal to wire up fuel pump to run all the time. Corrosion may build up around electrical contacts; However, some fuel pump relays come in different shapes and sizes, so it's best to locate your manufacturer's diagram if you're having trouble to figure out which pin is which, there will usually be numbers on the bottom of the relay that indicate the pin positions, or you can locate a wiring diagram.
The fuel pump relay is an electronic component that is found on virtually all vehicles equipped with an internal combustion engine.
A circuit opening relay (cor) may as well be called a fuel pump relay, as that is what they control. I checked the wires feeding the fuel pump and there is no power coming to the fuel pump. Remove the fuel pump replay. Is this an internet phenomenon? It is recommended you have an experienced technician perform this service for you. The only other thing i can think of is problems with the control module. When wiring an electric fuel pump, we strongly recommend using an oil pressure cutoff switch for safety. Electric fuel pump wiring diagram. Alternatively, are there easier wires i can splice into? You may be getting the proper voltage to it. We focus on making this modification along with a classic update kit, but the process. The relay should have 4 pins on it. Route all pink wires, along with fuel pump relay wire.
With the help of this 'how to' tutorial, i'll show you how to do it using only a multimeter. The lower fuel pump speed also goes easier on the fuel pressure regulator and the entire fuel system as a whole. Ground, input voltage, load (which is connected directly to the fuel pump wiring), and battery. Ground to ground on battery. The fuel pump relay position may vary depending on year and model.

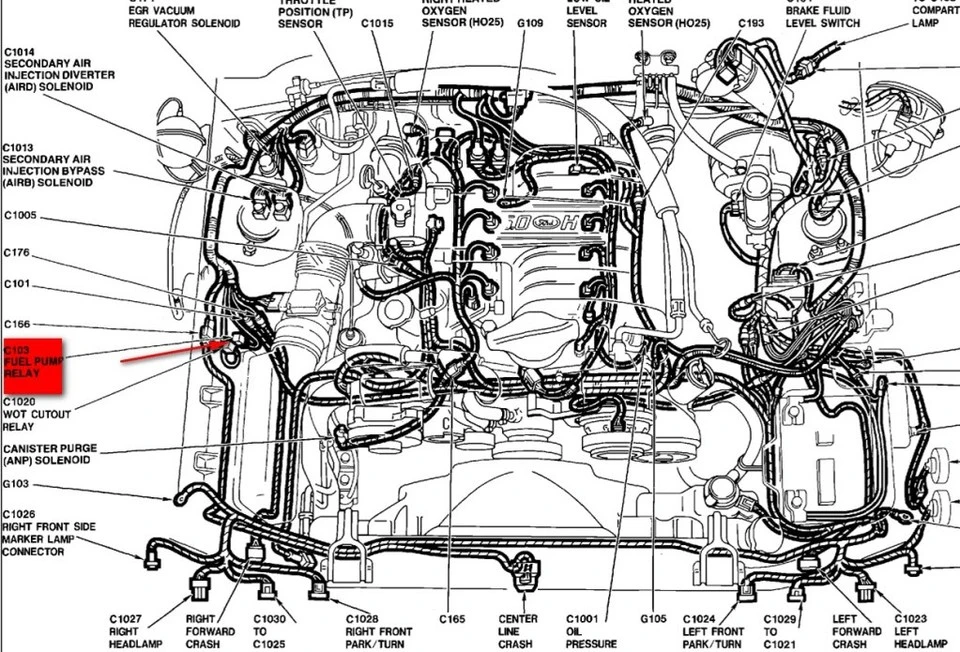

Ford Fuel Pump Relay Wiring Diagram | Ford, Diagram, Fuel ... from i.pinimg.com Remove the fuel pump replay. We focus on making this modification along with a classic update kit, but the process. Please be careful of the wiring harness for the instrument light dimmer, which is connected to this cover. I'm just at wits end. Thanks for the feedback guys. That way you will still have the safety. With the help of this 'how to' tutorial, i'll show you how to do it using only a multimeter. You may be getting the proper voltage to it.
I'm just not that savy when it comes to electrical problems.
Tape up wires, don't go too overboard incase you have to go back in. A fuel pump relay can fail in several ways. How to wire a fuel pump toyota corolla? That way you will still have the safety. A fuel pump relay functions primarily to maintain a consistent voltage supply to the. Ground, input voltage, load (which is connected directly to the fuel pump wiring), and battery. If you are using the pump to feed a nitrous oxide system, you don't need to use the pressure switch's n.c. It is often found in the fuse. Use jumper wires to supply 12v power to. As soon as you attach both of the jumper wires to the relay, a. Electric fuel pump wiring diagram. If the relay is fine but the fuel pump doesn't work then check supply voltage at the pump, if there's no supply voltage at the pump inspite the relay testing ok then you've got a wiring problem or a loose connection. In this video, anthony goes over the very basics when it comes to wiring up an electric fuel pump.
